ADR Transport Containers for Lithium-ion (Li-Ion) Batteries ASP 600-800-1500-1800

Product request double arrows

This Lithium-ion (Li-Ion) battery box is suitable for the transport and storage of batteries and cells in accordance with the ADR agreement, provided that the relevant packing instructions are followed. The packagings meet the requirements for substances of Packing Groups I, II, or III (marked X, Y, or Z in the UN code) according to ADR / RID / IMDG / RTDG regulations.

This transport packaging can also be used for other hazardous materials, provided they are compatible with the material resistance of steel (hot-dip galvanization) and the specific ADR packing instructions for the particular hazardous substance are followed.

Certification and Types

  • 600 l and 800 l variants are certified according to Chapter 6.1 of the ADR as steel boxes (4A).
  • 1500 l and 1800 l variants are certified according to Chapter 6.6 of the ADR as large steel packagings (50A).
  • Steel packagings of these types do not require periodic recertification (testing in an authorized laboratory) during their service life, provided they do not show damage affecting safety.

Scope of Use for Lithium Batteries

In accordance with the packing instructions (specifically P903, P908, P910 for 4A and LP903, LP904, LP905 for 50A), the packaging is intended for:

  • Other lithium batteries (e.g., new batteries within the distribution chain).
  • Lithium batteries transported for disposal or recycling.
  • Prototypes and small series (up to 100 units) transported for testing.
  • Damaged or defective batteries, excluding critically damaged units (i.e., those prone to rapid decomposition, dangerous reaction, fire, dangerous evolution of heat, or emission of toxic, corrosive, or flammable vapors).

Specifications

  • Compliant with DIN 30741, Part I, UN certified.

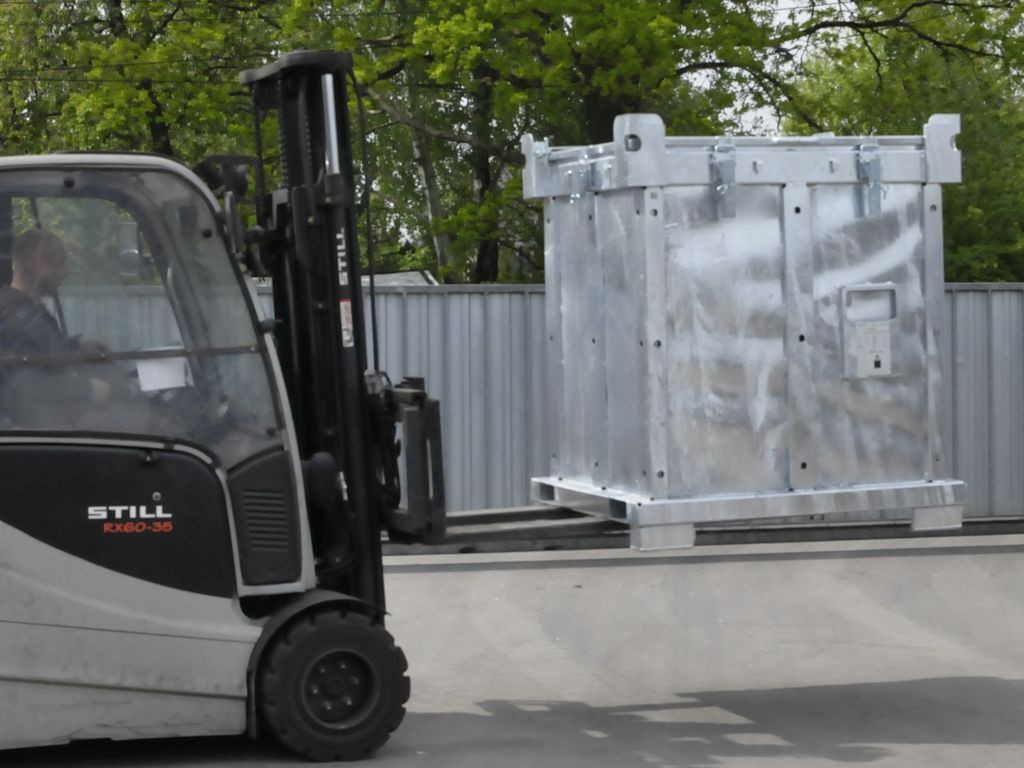

  • Handling via forklift or crane.
  • Document pocket included.
  • Hot-dip galvanized.

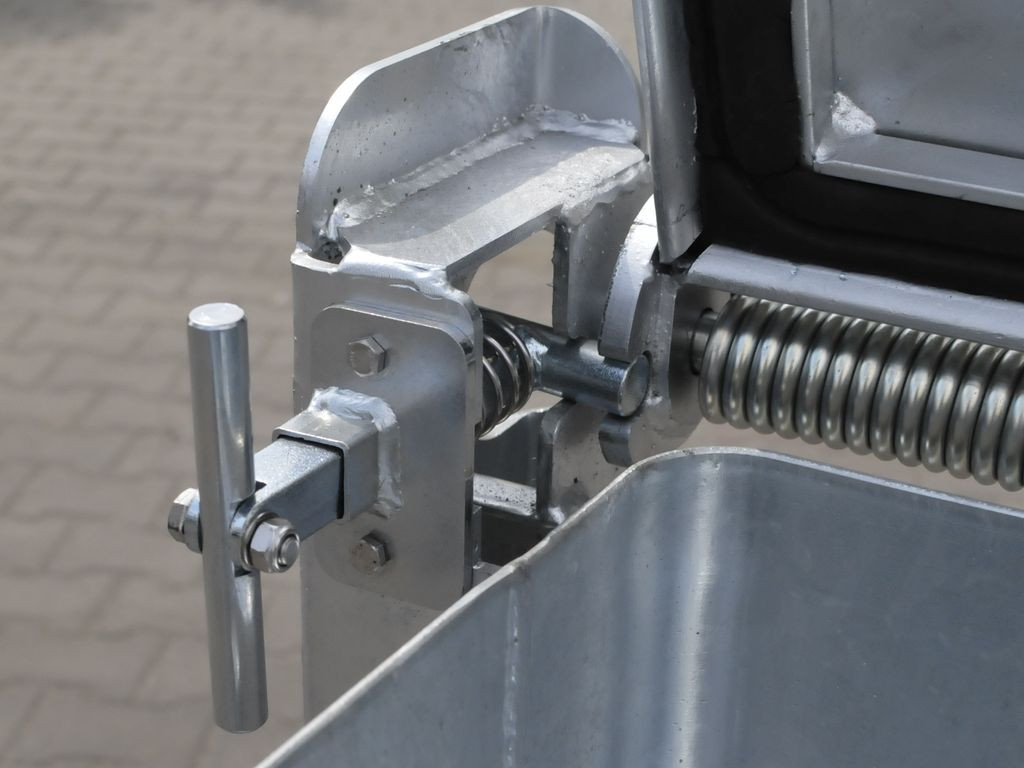

Lid

  • Equipped with a handle.
  • Lockable in an open position at 81 degrees; automatic locking at 270 degrees.

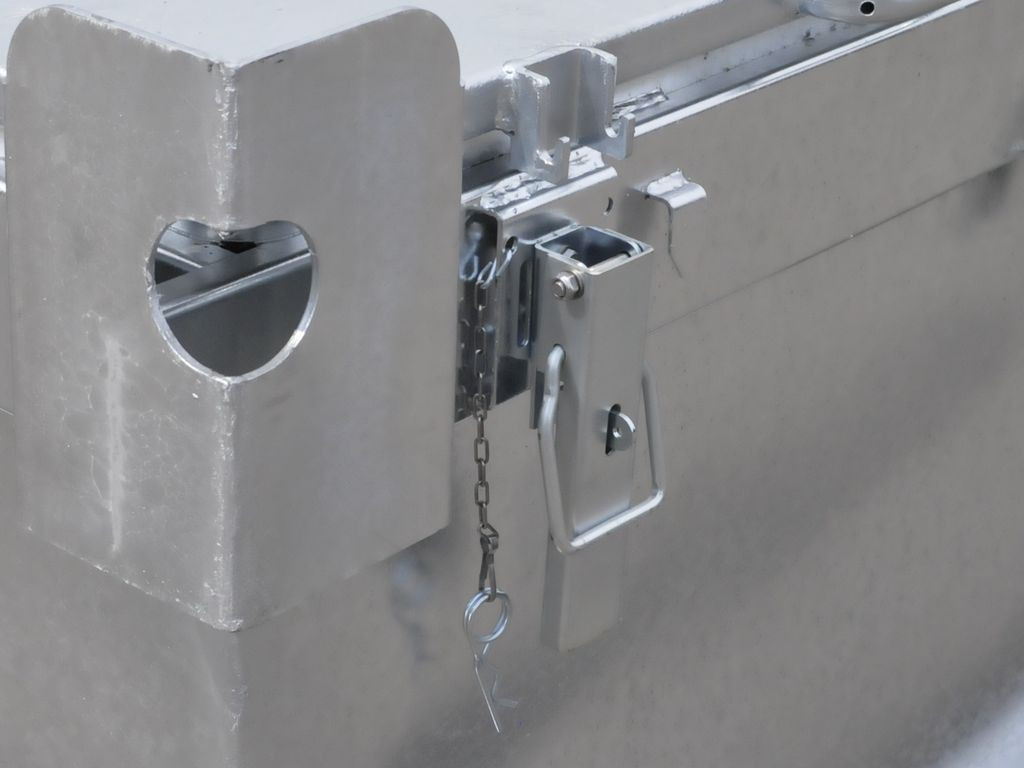

  • 4 lid locks.
  • Lid-assist springs.
  • Lid thickness: 3 mm.
  • Side thickness: 2 mm.
  • Bottom thickness: 2.5 mm.
Type Length Width Height Volume Weight Brutto
ASP 600 4AX 1200 mm 1000 mm 1060 mm 600 l 200 kg 600 kg
ASP 800 4AX 1200 mm 1000 mm 1252 mm 800 l 225 kg 625 kg
ASP 1500 50AX 1442 mm 1199 mm 1375 mm 1500 l 320 kg 1500 kg
ASP 1800 50AX 1461 mm 1461 mm 1302 mm 1800 l 362 kg 1600 kg



Photogallery

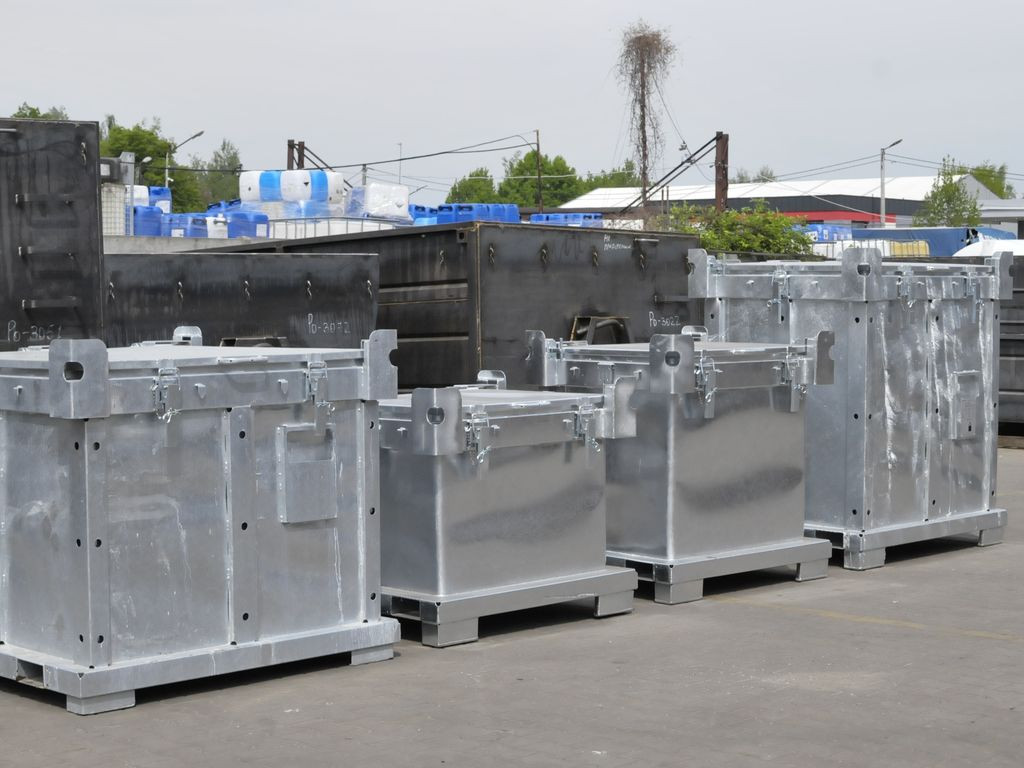

ADR Transport Containers for Lithium-ion (Li-Ion) Batteries ASP 600-800-1500-1800 - 0

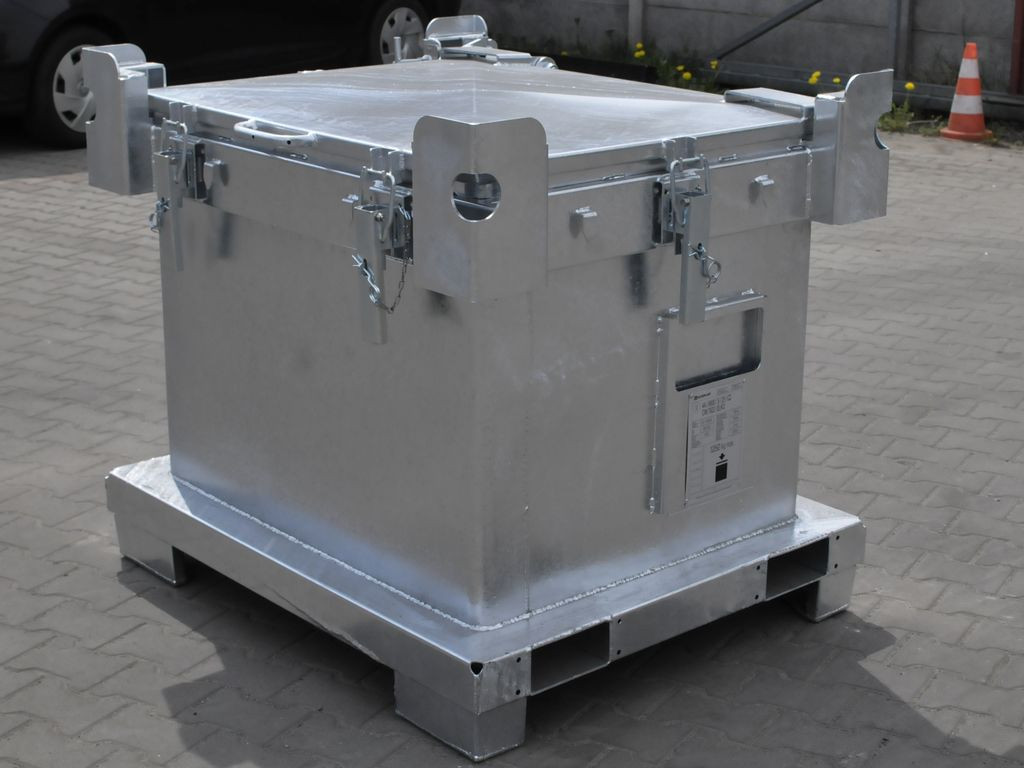

ADR Transport Containers for Lithium-ion (Li-Ion) Batteries ASP 600-800-1500-1800 - 1
ADR Transport Containers for Lithium-ion (Li-Ion) Batteries ASP 600-800-1500-1800 - 2
ADR Transport Containers for Lithium-ion (Li-Ion) Batteries ASP 600-800-1500-1800 - 3
