Standard Version (ABR-DSD)

Classic design with side vertical reinforcements, a universal solution for the transport of various types of materials. Variation of the spacing of the side/floor reinforcements according to the required load, robust upper hem, different types of hook and design of the rear door or fl ap according to the specific application.







Standard specification:

  • acc. to the German (DIN 30 722) norm,
  • hook, cable, chain lifting system or a combination of thereof,
  • EN S235 or S355 steel, thickness 2 - 6 mm,
  • continuous welding (except for the bottom reinforcements where disconnected welding was used),
  • top profile - tube 89 × 6 mm,
  • rails and lifting made of IPN 180, rear frame of a rolled section UPN 180,
  • vertical reinforcements of sides U 100 × 60 × 3 mm and bottom beams U 100 × 60 × 4 mm,
  • spacing of 750 mm,
  • the transition between sides and bottom 45, 90° or so-called round corner,

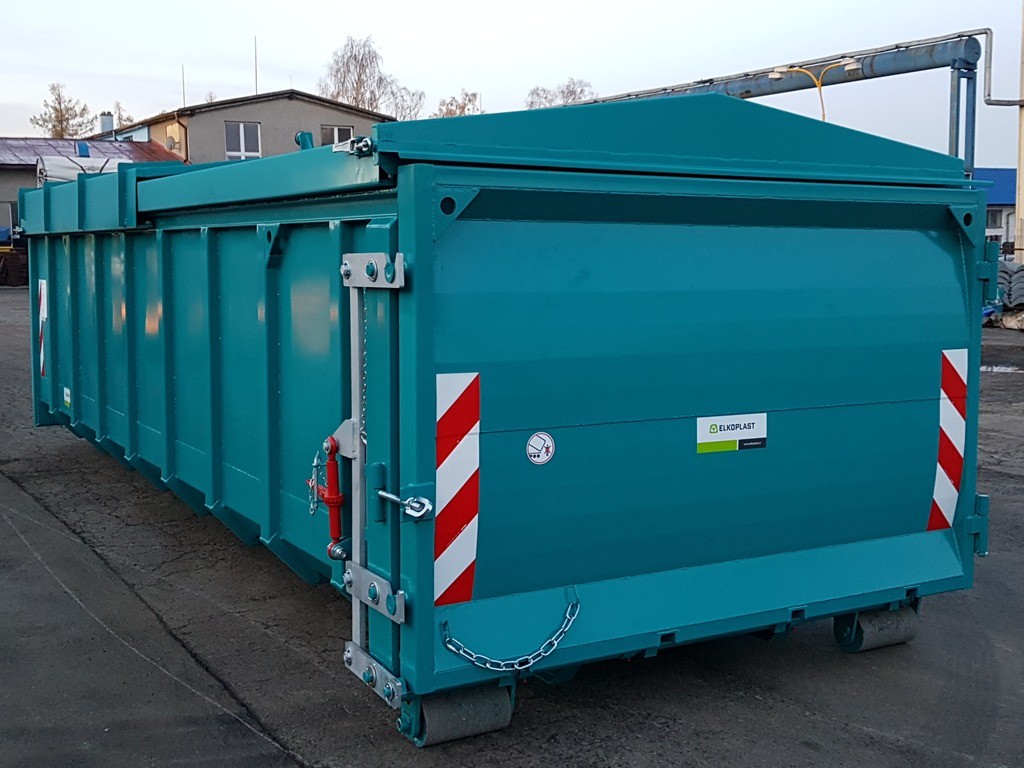

  • the rear side of the container formed of double-wing, single-wing or flap door
  • wheels and hinges provided with grease cups,
  • central door locking operated from the side of the container,

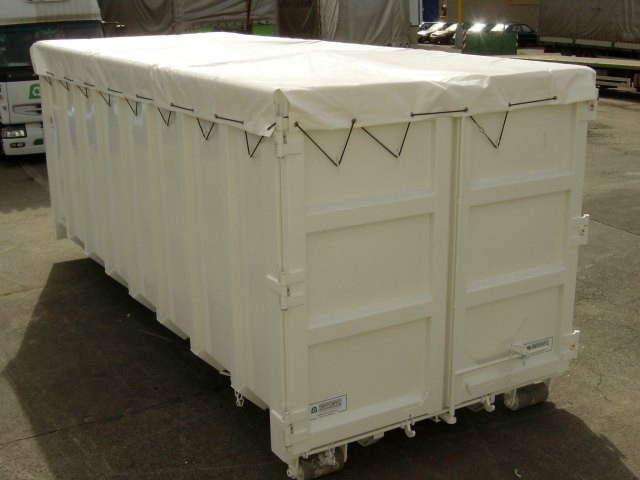

  • tarpaulin hooks,

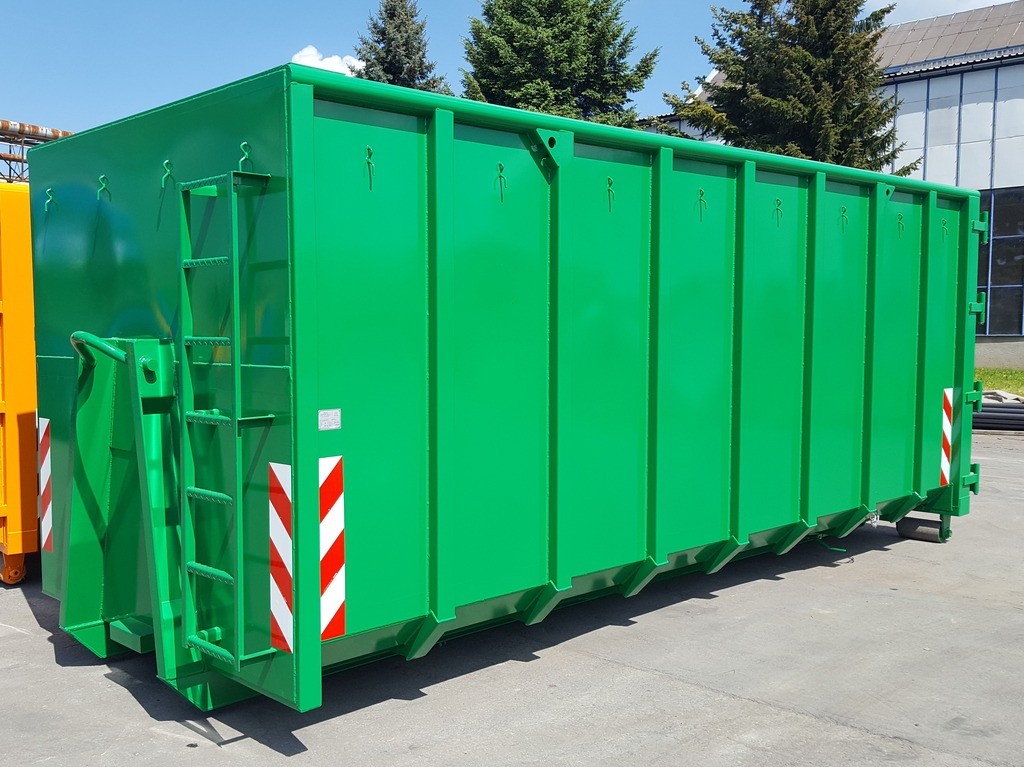

  • a ladder on containers with inner height min. 1 250 mm (fulfilling the safety norms).

Containers can be additionally fitted with:

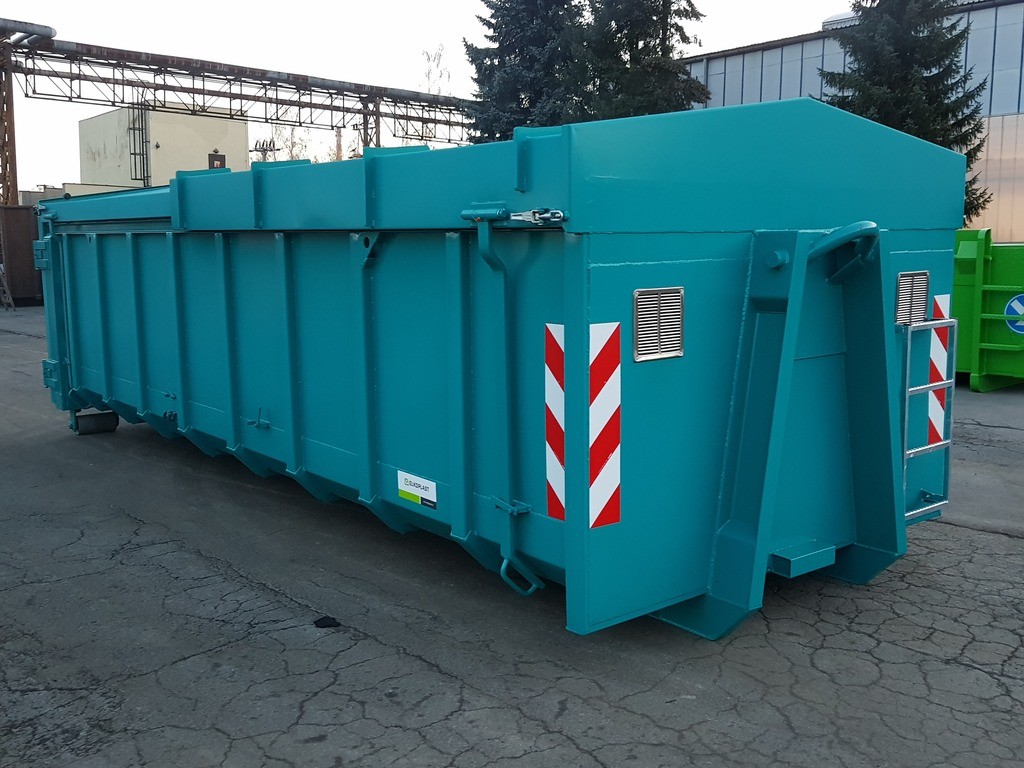

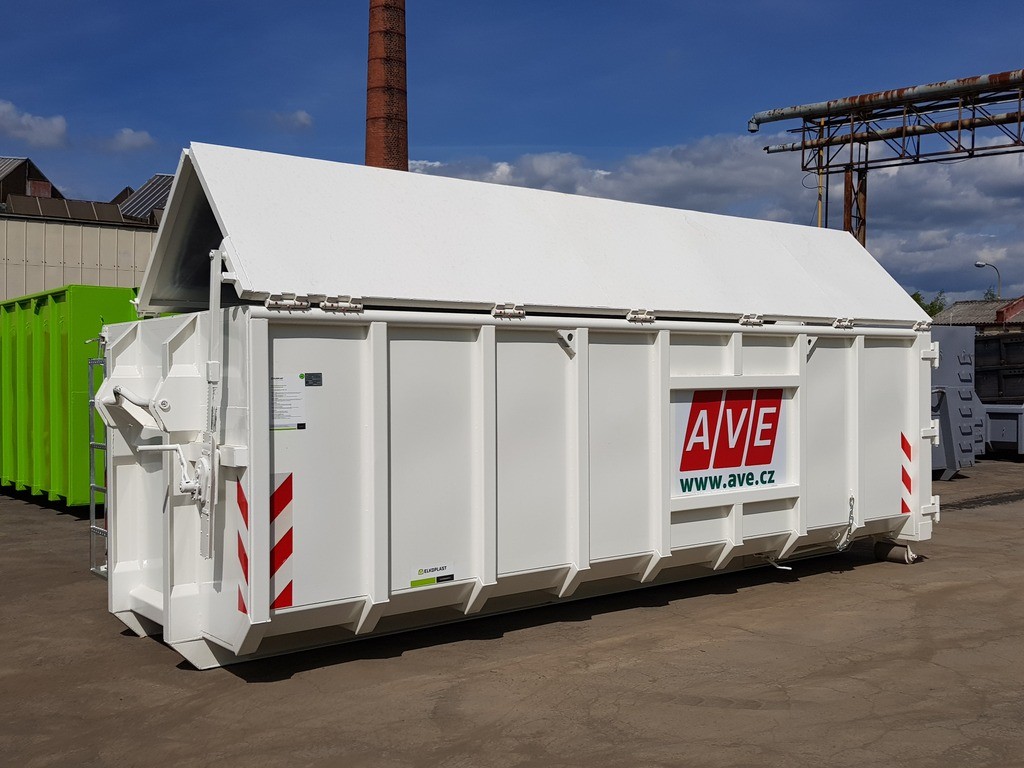

  • two-piece sliding roof,

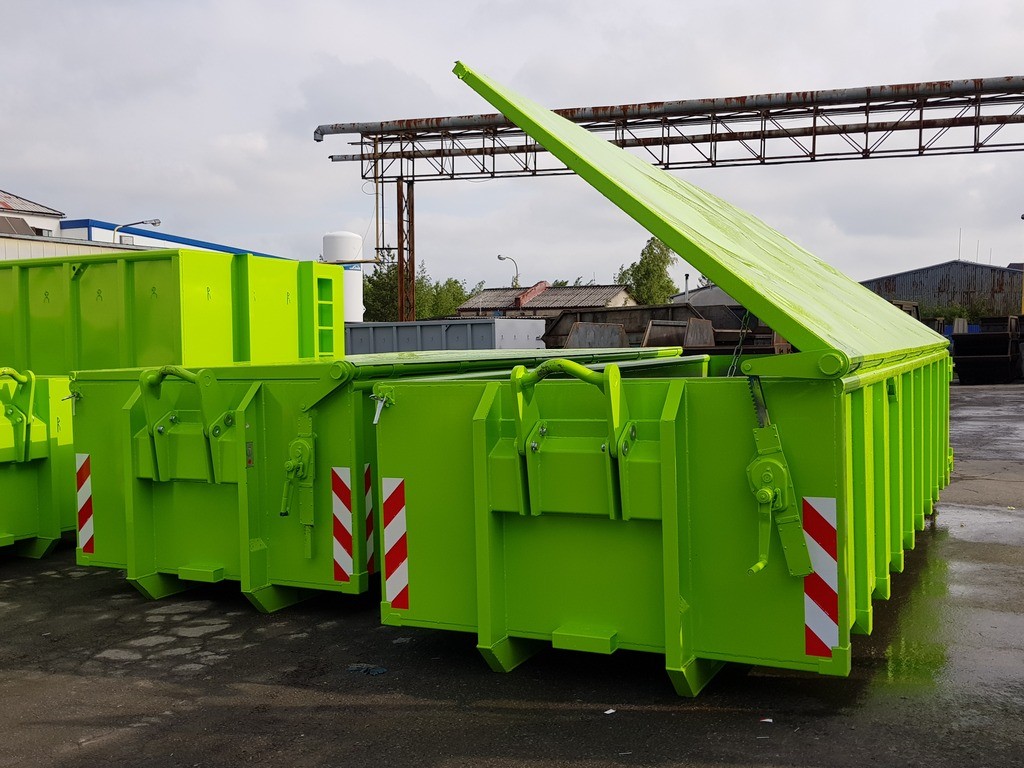

  • tilting roof operated mechanically or hydraulically,
  • spooling roof with fastening straps or fixed roof.

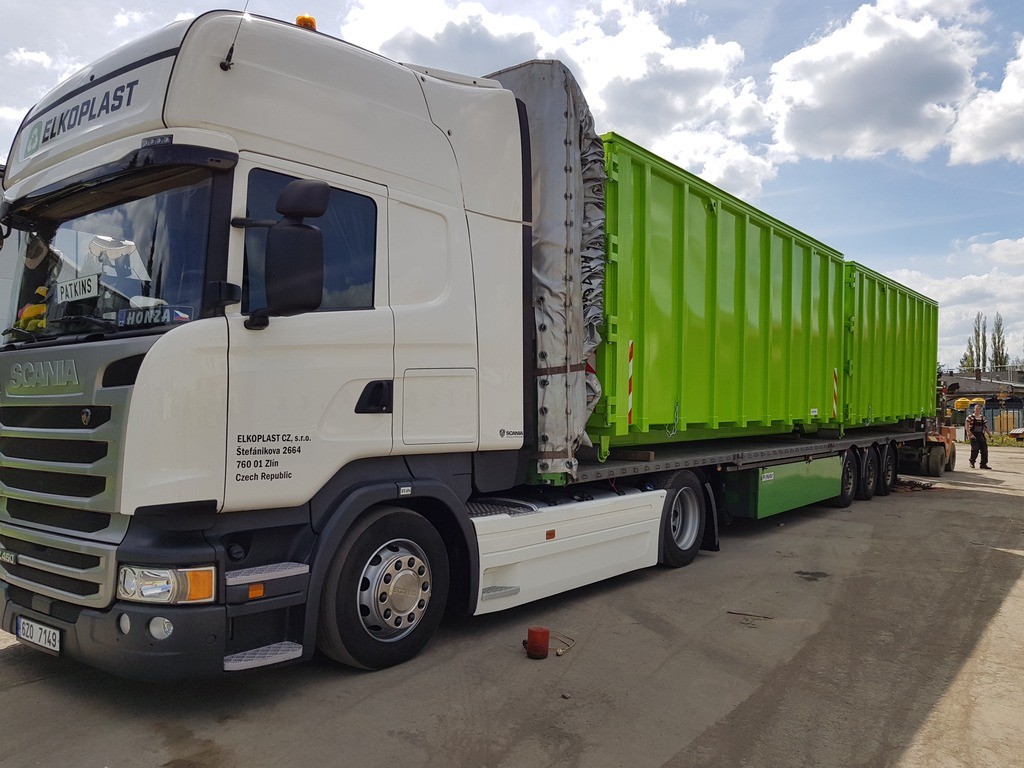

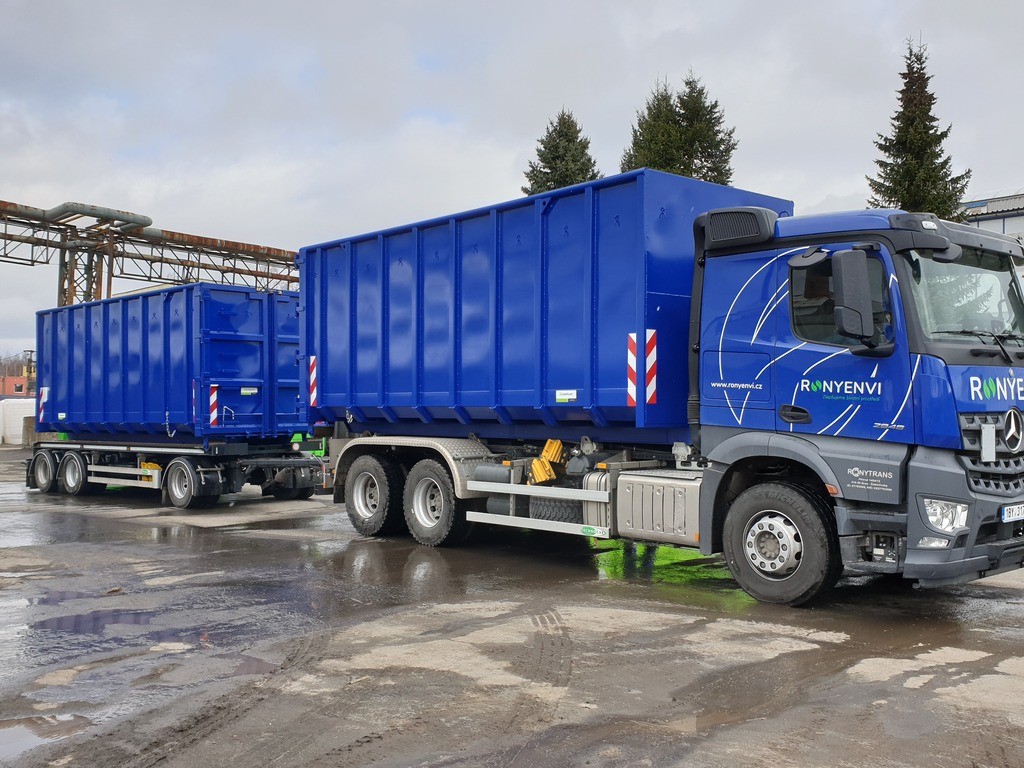

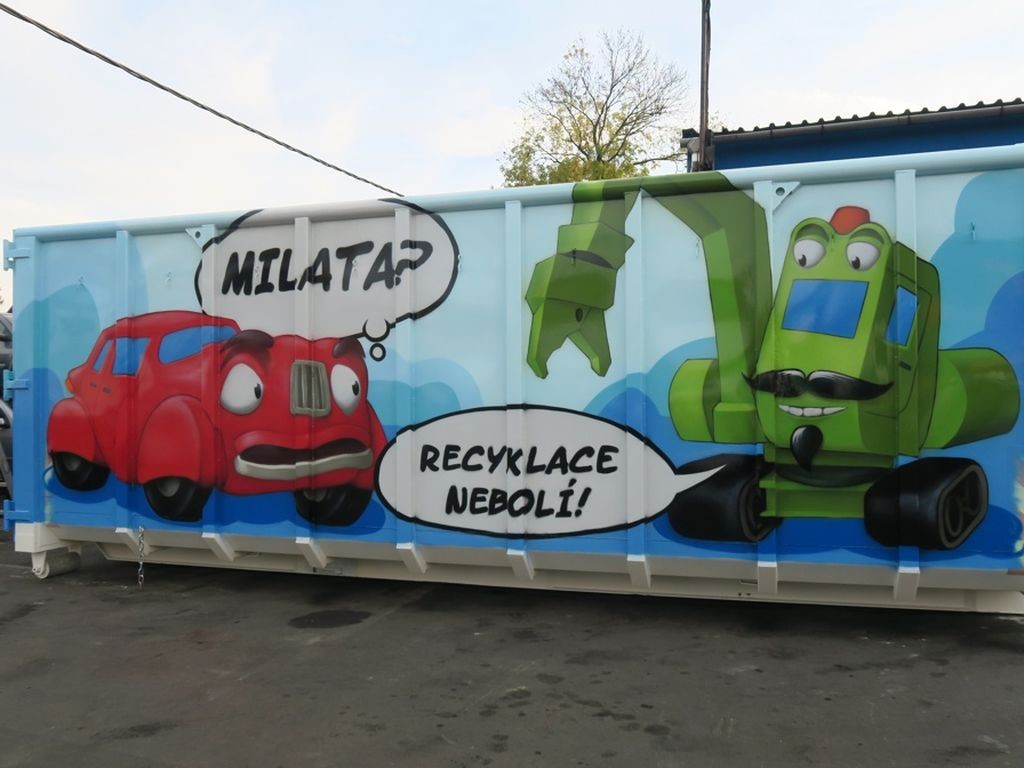

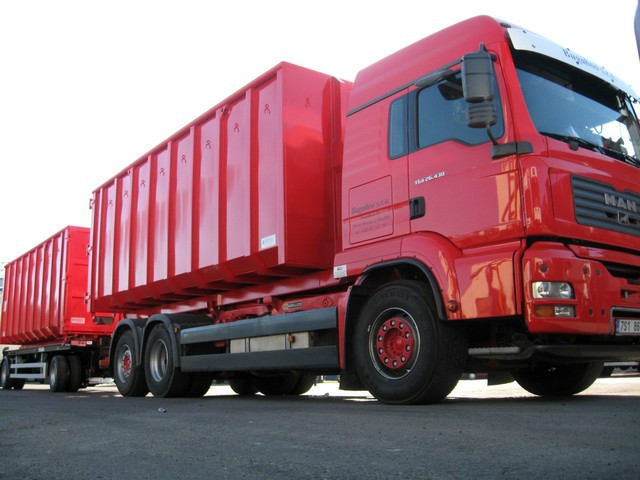

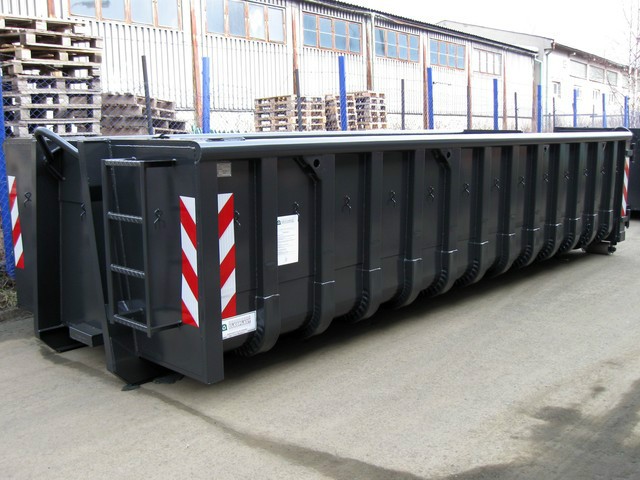

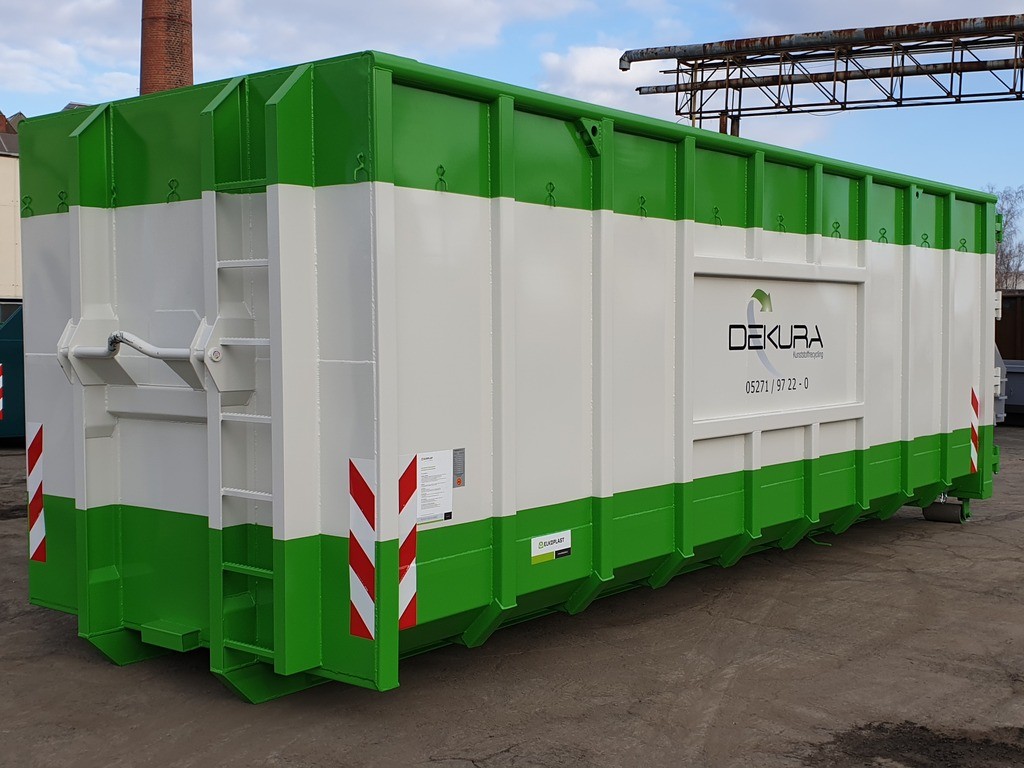

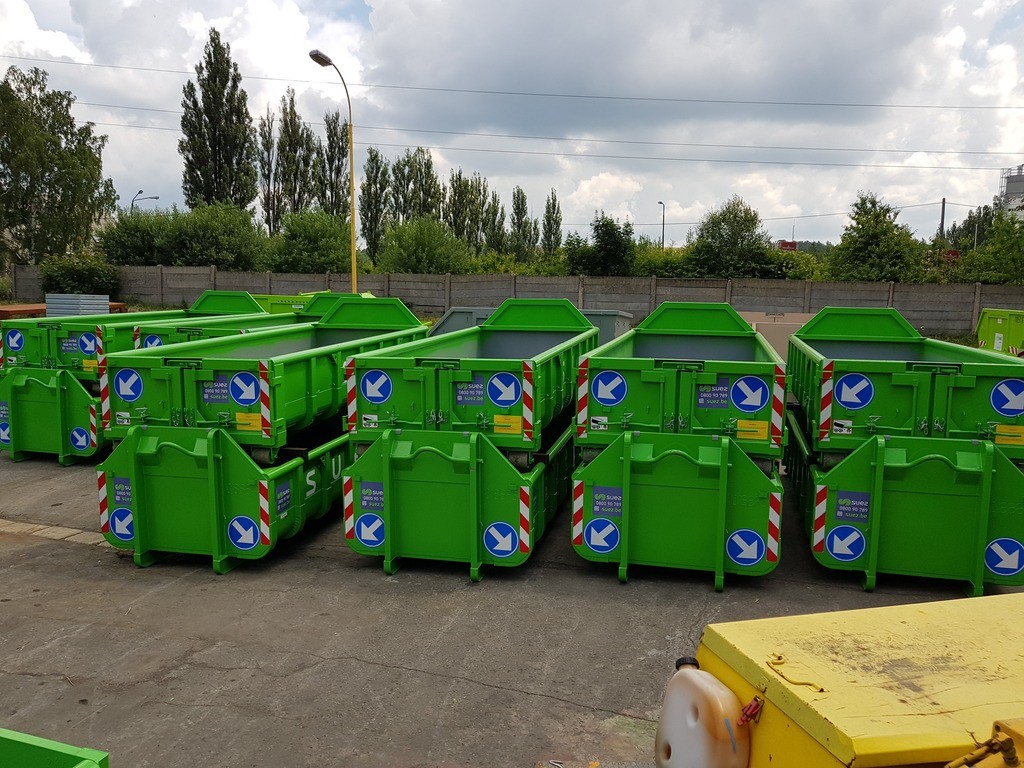

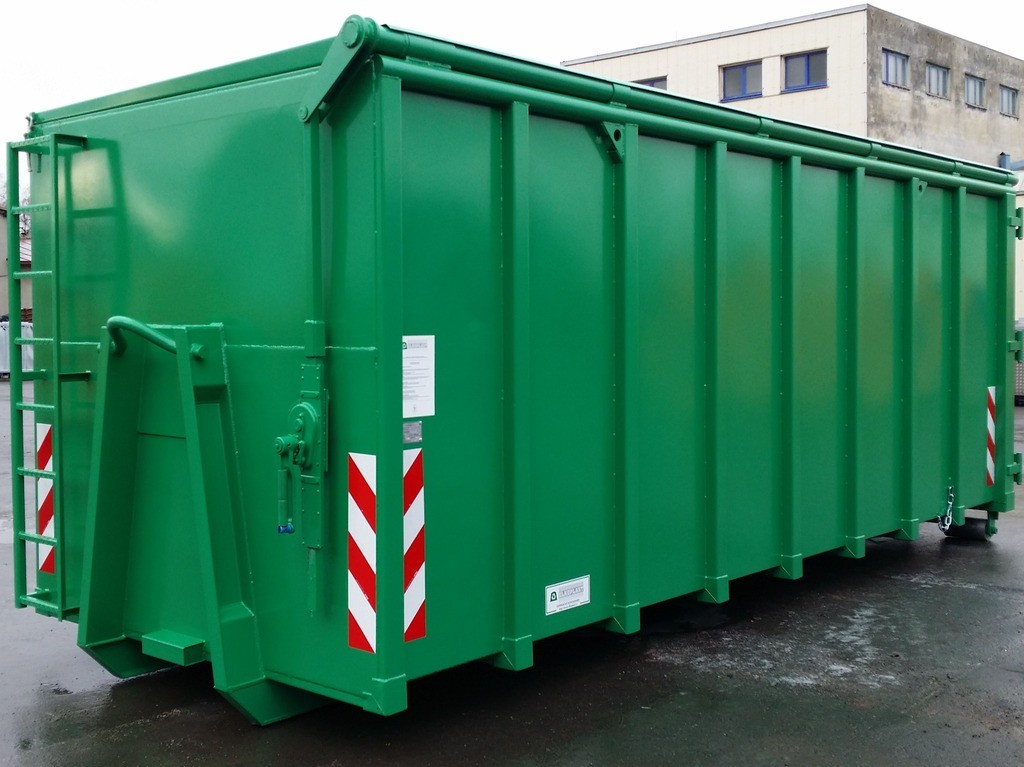

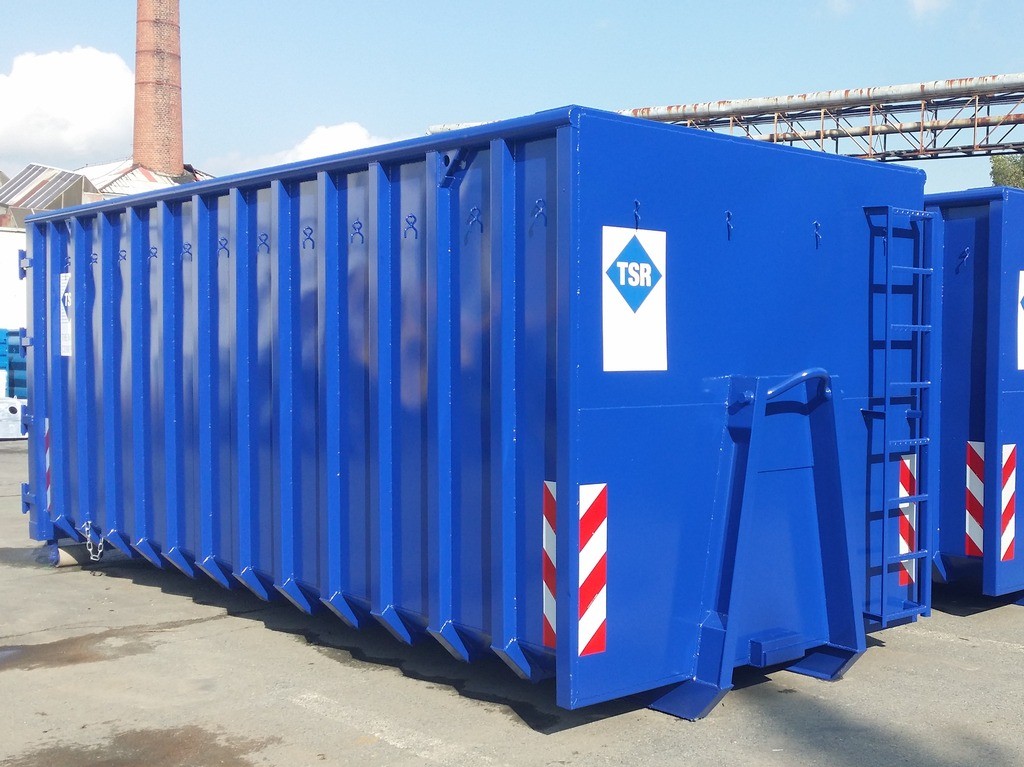

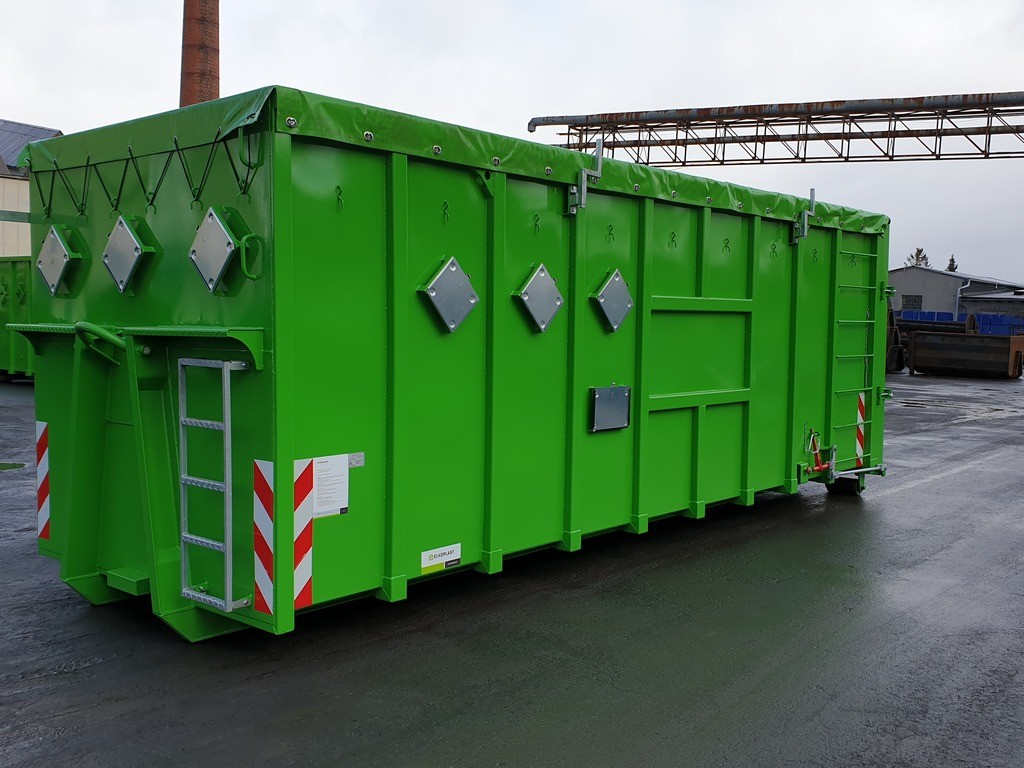

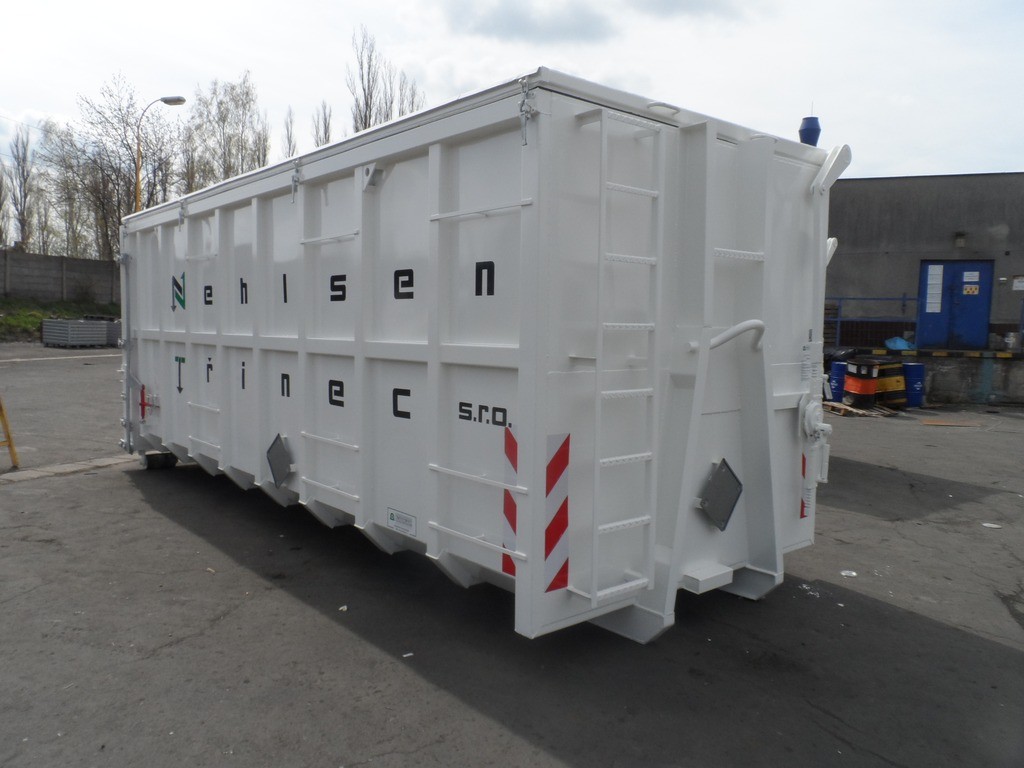

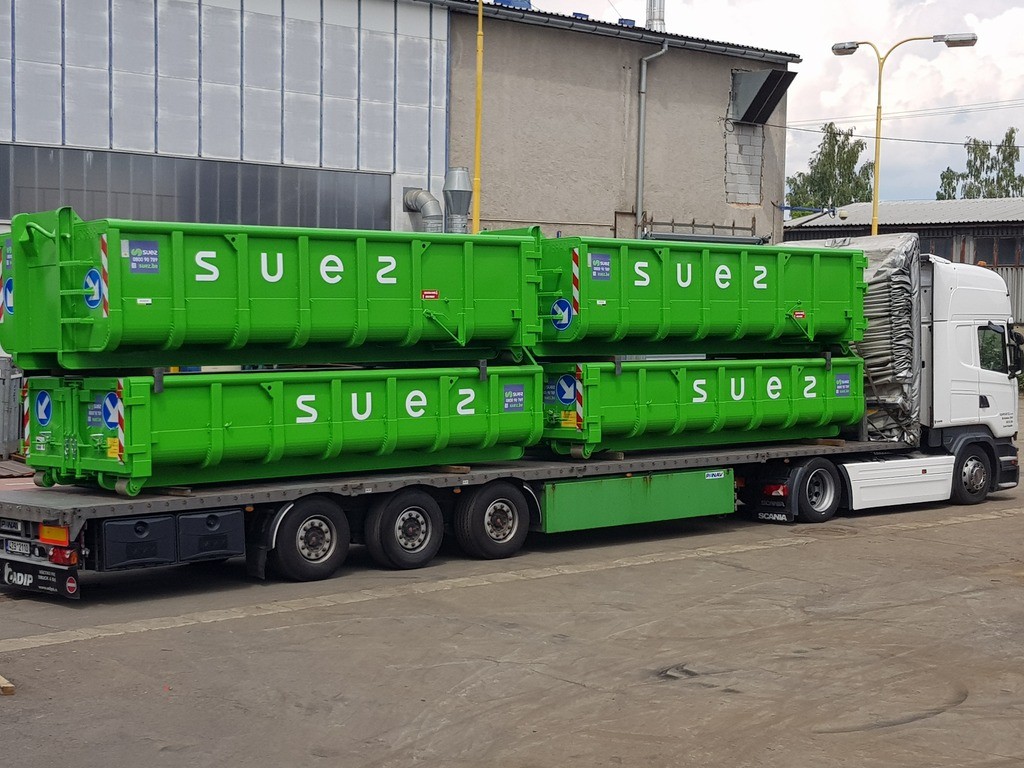

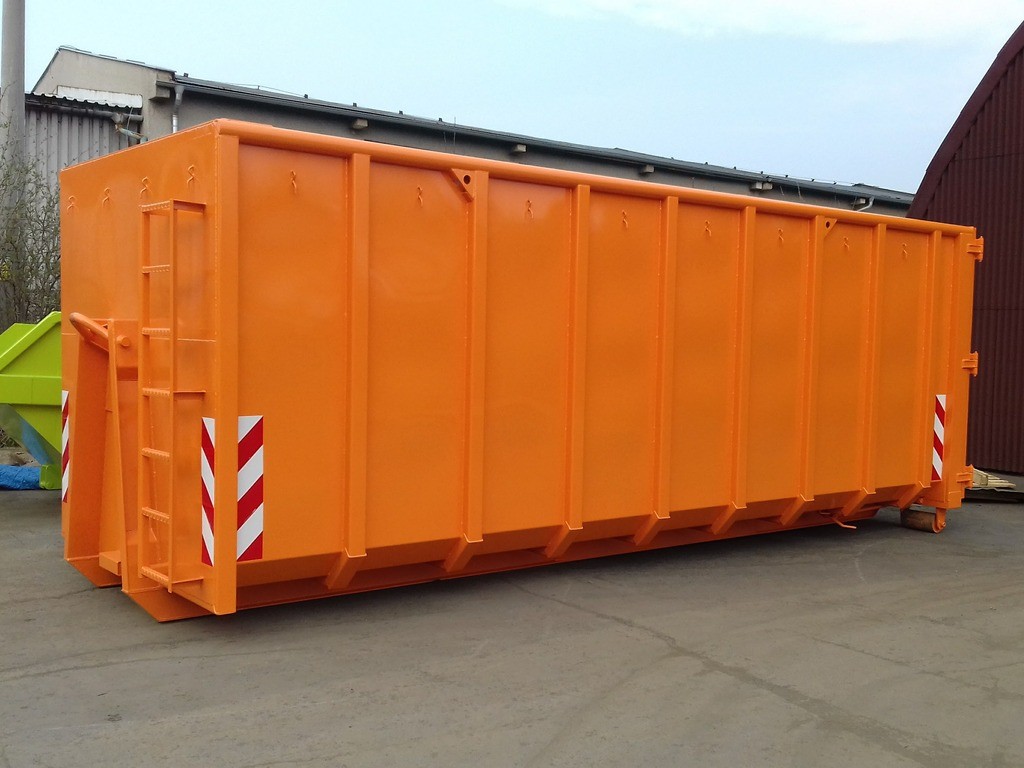

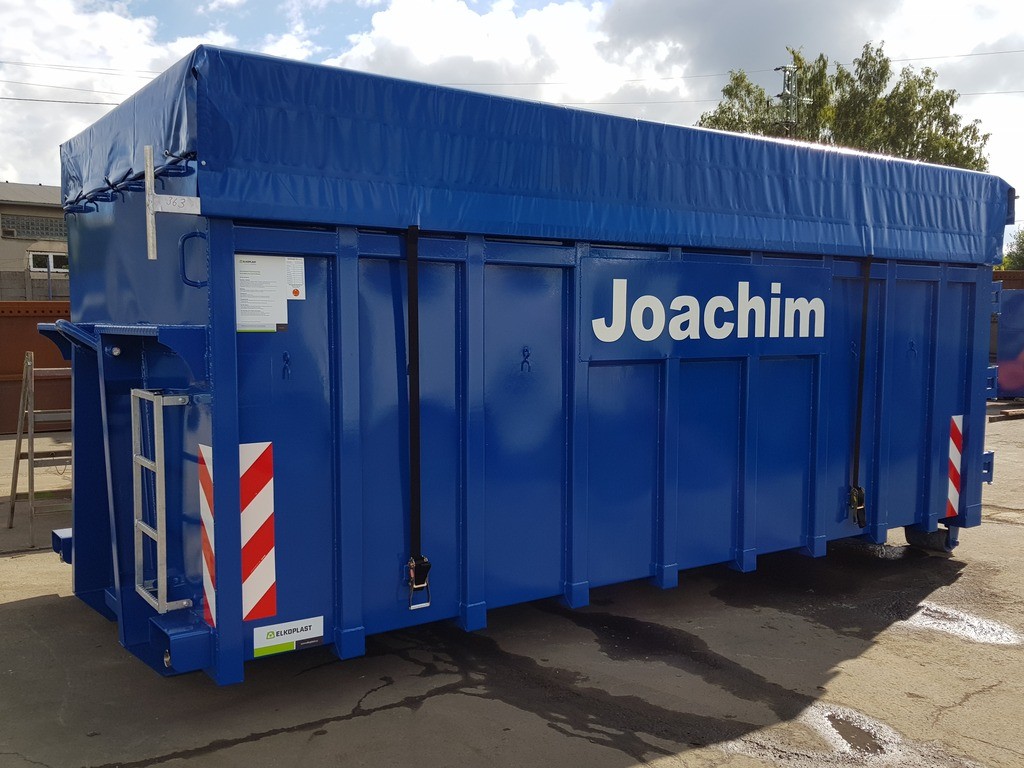

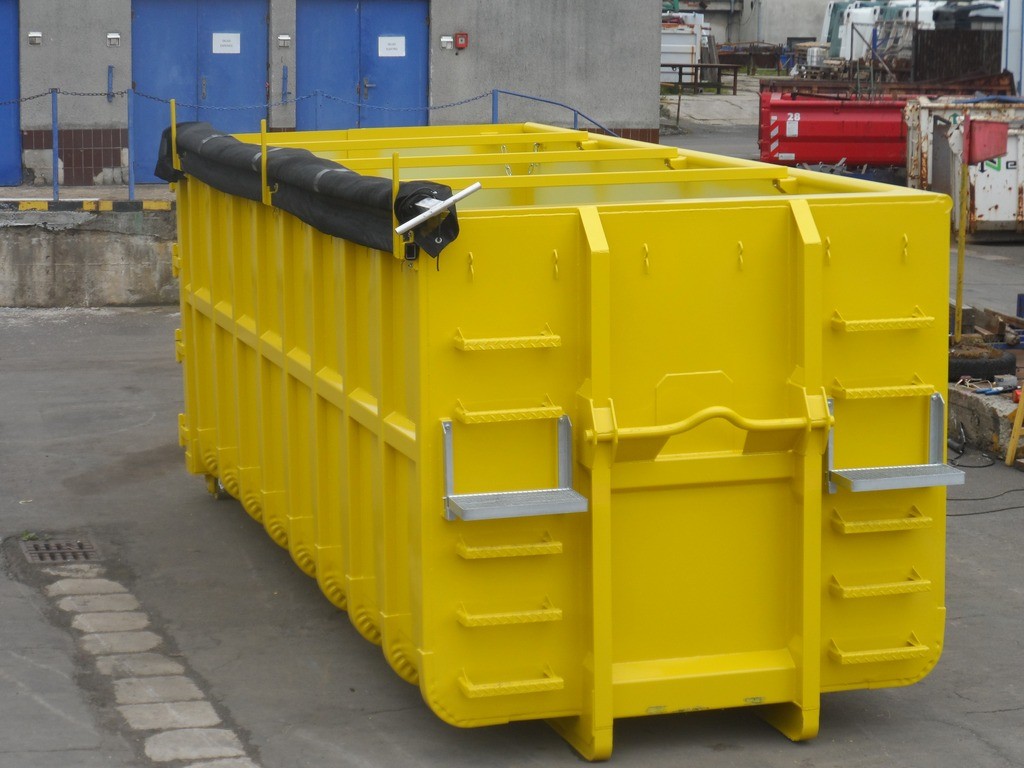

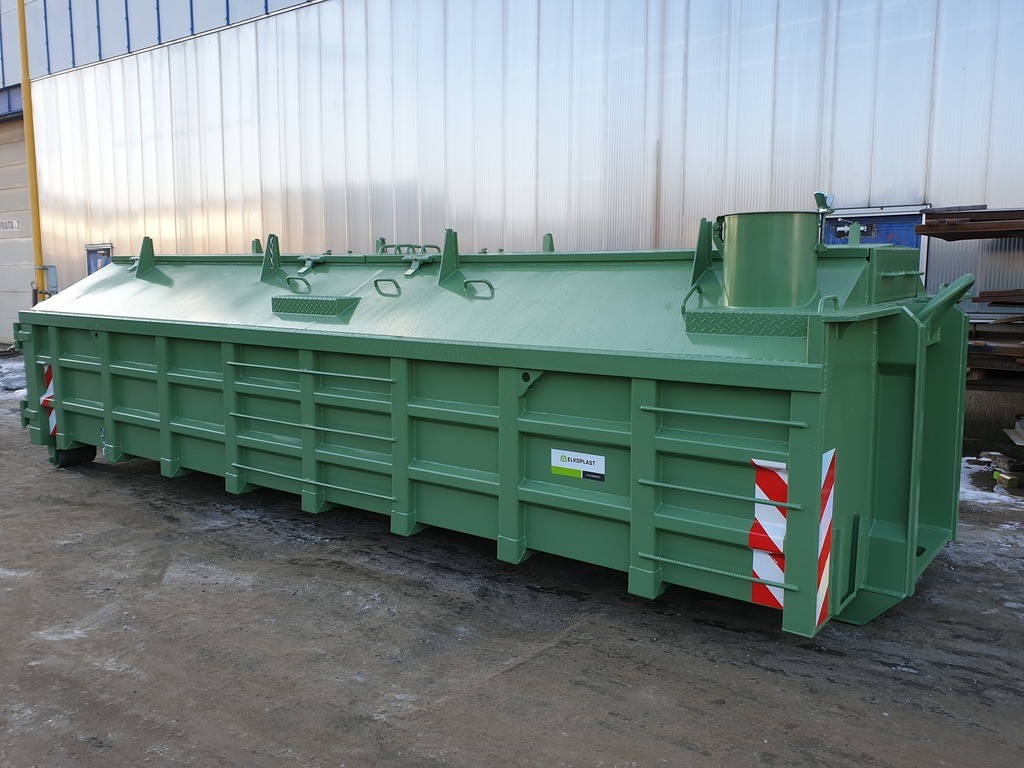

Photogallery
